Horizon boards : FLAW EXTRACTOR PLUS module
Flaw
Extractor Plus (FXP or iSM508) is a real-time processing module for
Horizon Line Scan boards that offers advanced image processing functions for
line scan applications.
Using the latest FPGA technology, FXP provides real-time filtering and
thresholding capabilities for high-speed analysis of defects and objects.
Technical specifications:
-
Input depth: 32 bits
-
Maximum pixel clock: 85 Mhz
-
Max pixels/line: 16 K
-
Buffer capacity: 2mb
-
On-board processing: fpga
-
I/O lines: 0
-
Encoders: 0
-
Triggers: 0
Hardware:
-
Companion boards for HORIZON 4LC and HORIZON LINK
-
4 x 8 bit channel inputs
-
Up to 85 MHz pixel clock per tap
-
Convolution & Morphological filtering up to 7x7 kernel
-
Averaging filters up to 32x32 kernel
-
Real-time Thresholding operators
-
Real-time color-space conversion operators
-
Flat field correction
-
Run Length Encoding
-
Process data from single, dual or four tap cameras
-
Custom design for OEM applications

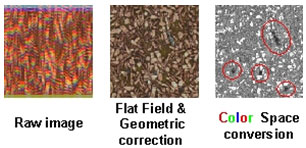

Example of Color Segmentation
Blob or Defect samples enhanced by 2D pre-processing
Software:
-
Windows NT and Windows 2000 Drivers (included)
-
C/C++ Library (included)
-
Set up with CAP software (included)
-
PARALLELIX Line Scan Image Processing (optional)
Options :
PARALLELIX: Line Scan Image Processing library
> Download the PDF datasheet
